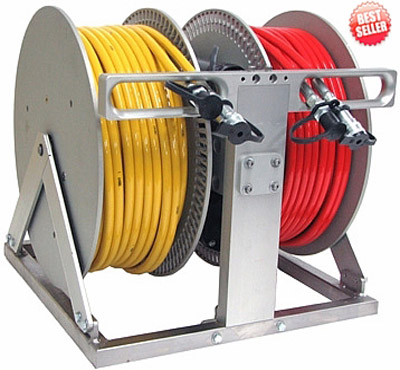

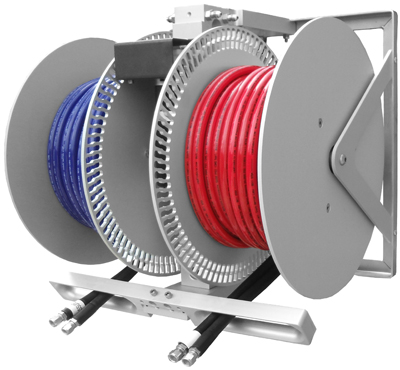

6011 Dual Electric Rewind Rescue Reel
As Shown:
Top Rewind Guide
Left Side: 100ft. Twinline Hose
Right Side: 100ft. Twinline Hose
Capacity Each Side:
100ft. Twinline Hydraulic Hose
100ft. 10/3 or 10/4 Electric Cable
150ft. 12/3 Electric Cable
140ft. Working Air
200ft. Breathing Air
Depth: 18 Inches
Width: 17 1/4 Inches
Height: 16 3/4 Inches
Empty Weight: 60 lbs
Average Amp. Draw Per Motor: 3.5 Amp.
Working Pressure: 10,500 PSI
|
|
|
