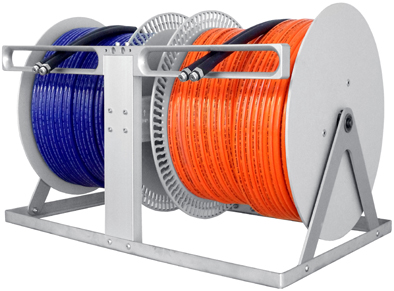

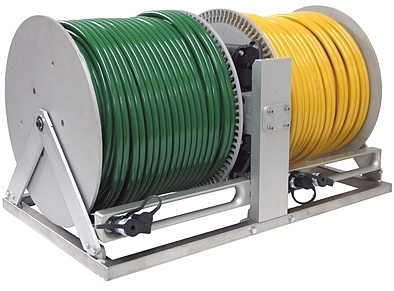

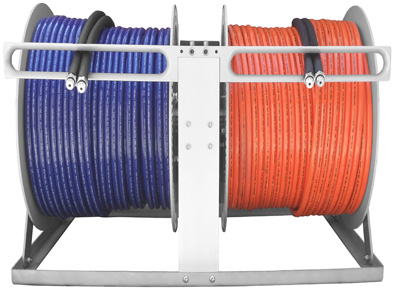

6022 Dual Electric Rewind Rescue Reel
As Shown:
Bottom Rewind Guide
Left Side: 200ft. Twinline Hydraulic Hose
Right Side: 250ft. Twinline Hydraulic Hose
Capacity Each Side:
200ft. Twinline Hydraulic Hose
200ft. 10/3 or 10/4 Electric Cable
280ft. Working Air
400ft. Breathing Air
Depth: 18 Inches
Width: 28 9/16 Inches
Height: 16 3/4 Inches
Empty Weight: 77 Pounds
Average Amp. Draw Per Motor: 3.5 Amp.
Working Pressure: 10,500 PSI
|
|
|
